UV Series

Features

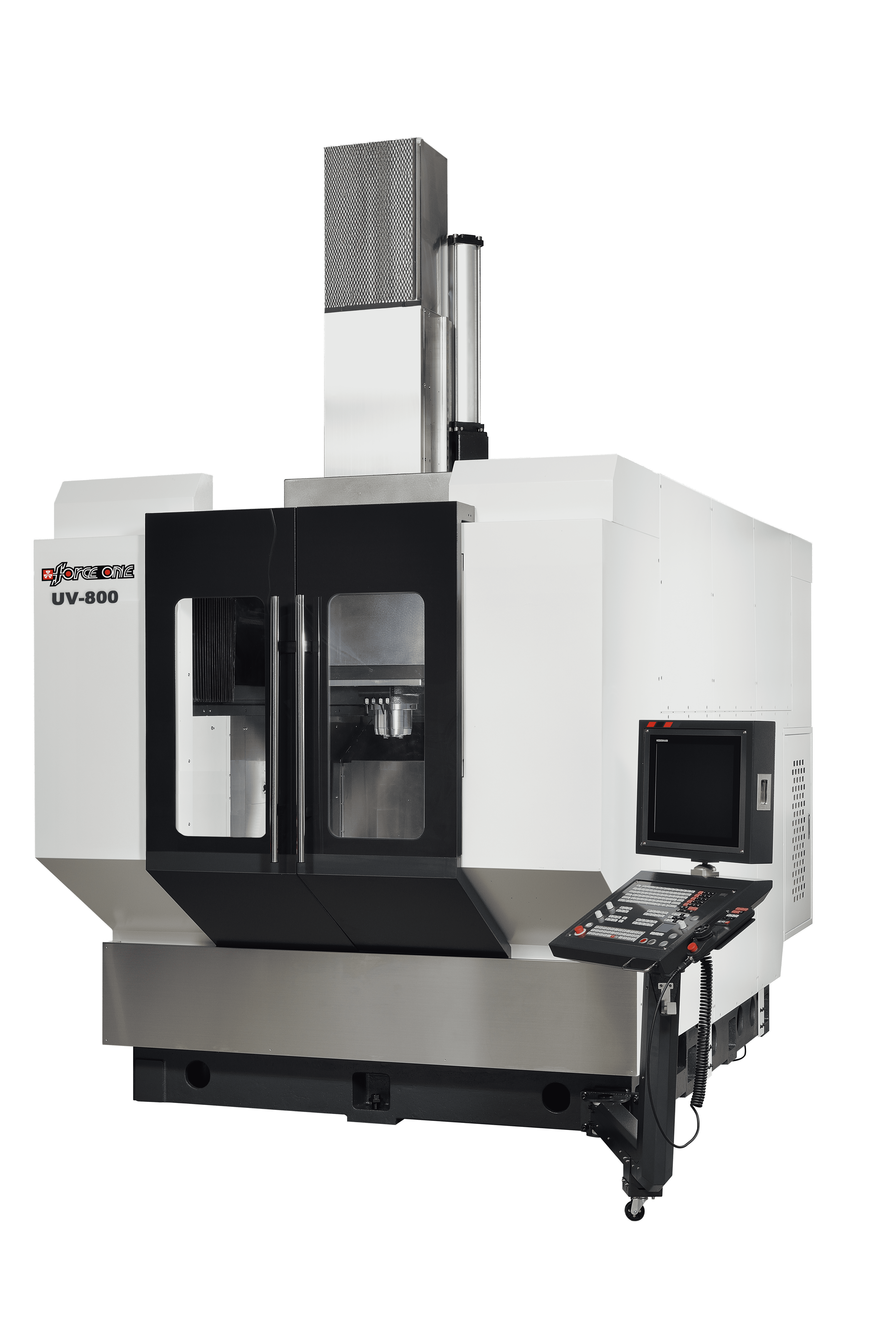

  • The UV-800 Gantry-Type 5-Axis Machining Center is engineered for outstanding structural rigidity and superior machining stability.
  • Key components are engineered with advanced technologies and sourced from
  • world-class suppliers to ensure high precision, long-term reliability, and consistent performance.
  • Forceone’s patented AI technology delivers superior accuracy and fully embraces Industry 4.0 capabilities, enhancing overall system reliability.
  • The design significantly reduces maintenance costs while minimizing unexpected Downtime.

ITEM UV-800

Spindle taper

 ISO40 / HSK-A63 (ISO50 / HSK-A100)

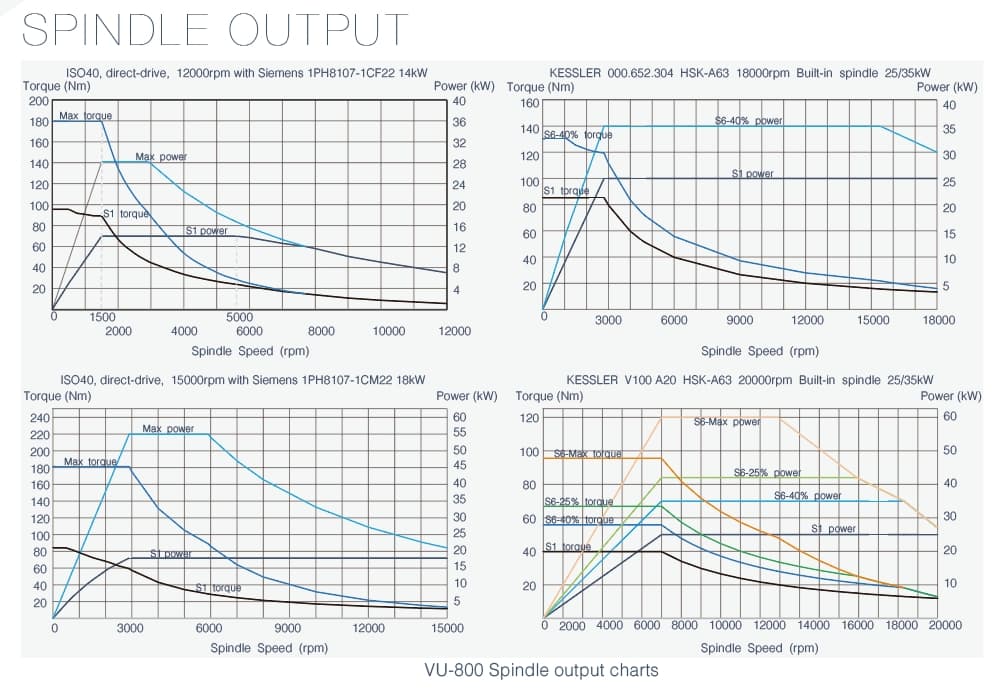

Spindle speed

 12000(15000/18000/20000) rpm

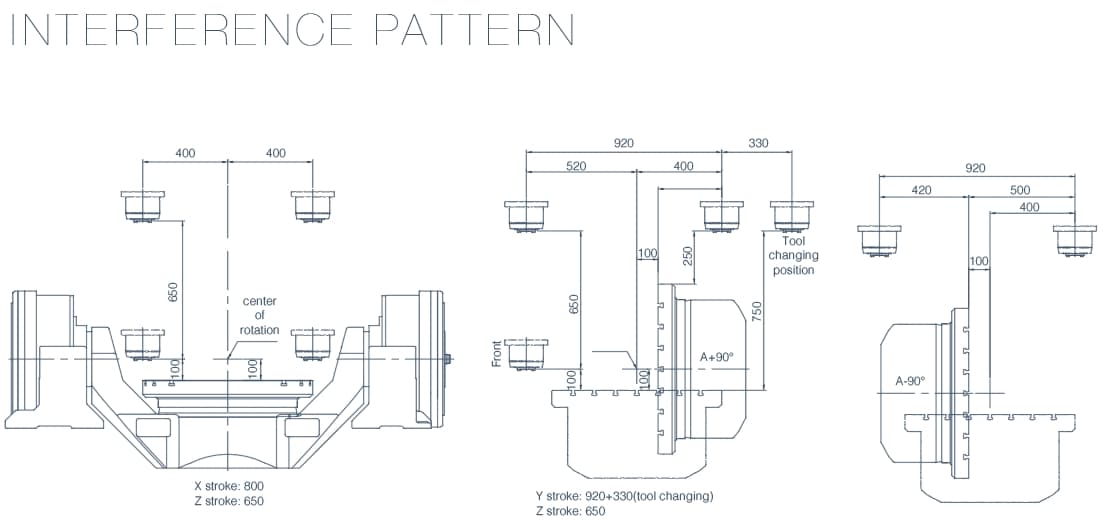

X/Y/Z-axis travel 800 / 920 / 650 mm

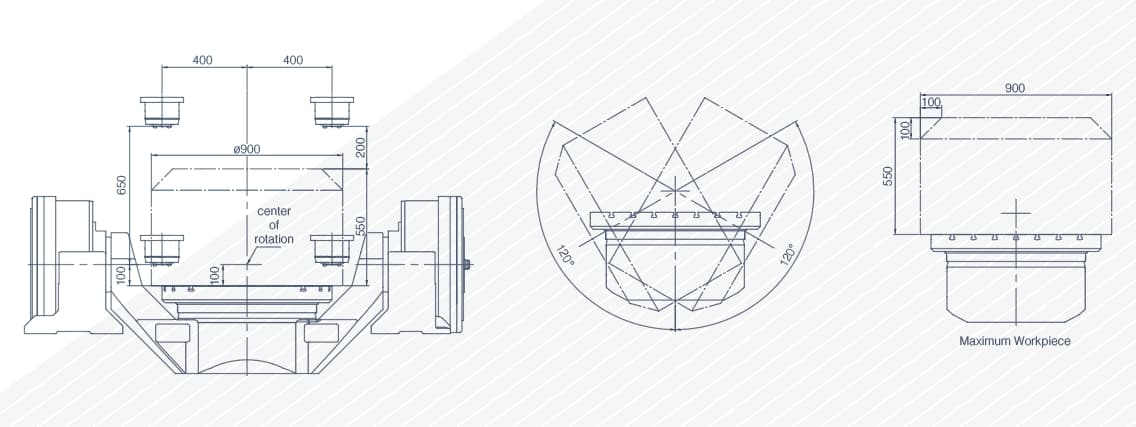

A-axis tilting range -120° ~ +120°

C-axis tilting range

 360°

Spindle nose to table surface

 100 ~ 750 mm

Max. tool length

 300 mm(40#/50#)

Max. tool diameter

 Ø75 / 125 mm (40# Flat Tool Magazine)
 Ø125 / 200 mm (50# Flat Tool Magazine)

Max. tool weight

 ISO 40/7 (ISO 50/15) kgs

X / Y / Z-axis rapid speed

 36(48) mm/min

A / C-axis rapid speed

 60/90 rpm

T-solt number/pitch

 5 x 125 x 14 mm

Max. table loading

 1200 kgs

Center hole

 50H8 mm

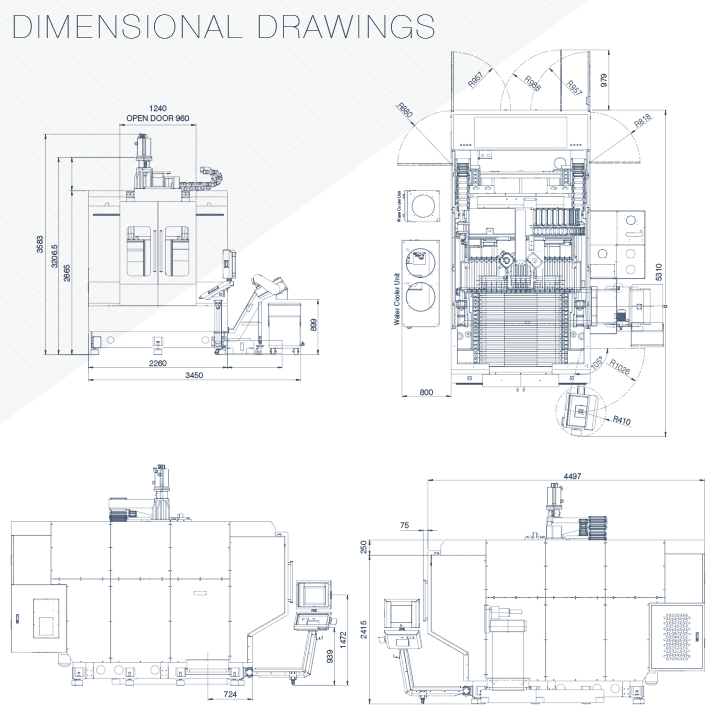

Machine dimension
(L x W x H)

 3450 x 5310 x 3600

Machine weight

 21000 kgs

Coolant tank capacity

 210 liters

Pneumatic supplt

 4-6 kgs
