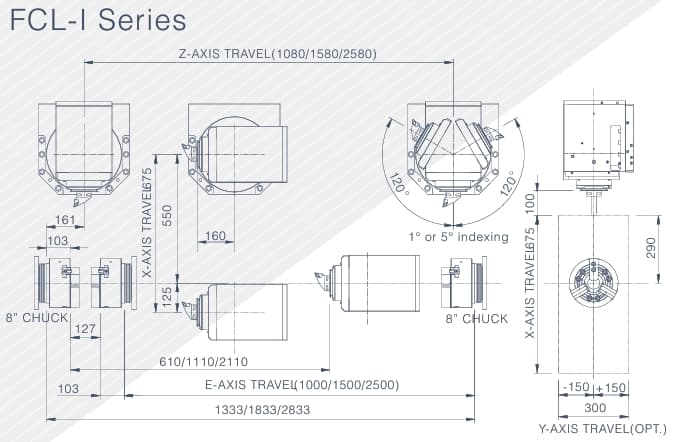

FCL-B/I Series

Features

  • Force One Machinery proudly introduces the FCL-I/FCL-B Series, featuring FCL-20I (Index Positioning Series) and FCL-20B (B-Axis Servo Series). Both models come standard with an ATC 32T automatic tool changer, providing exceptional flexibility for multi-task machining. Additionally, the ST (Lower Turret Model) configuration is available as an option, further enhancing productivity and versatility

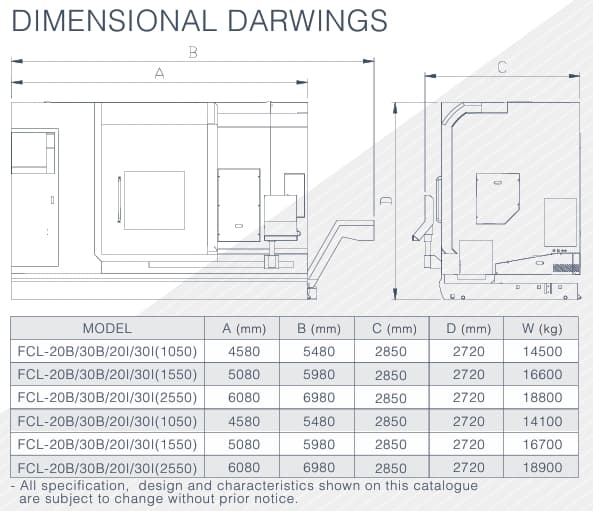

ITEM FCL-20I FCL-20IS FCL-20ITS FCL-30I FCL-30IS FCL-30ITS

 Max. swing of workpiece.

 660 660 660 660 660 660

 Max. turning length

  1050/1550/2550  1050/1550/2550  1050/1550/2550  1000/1500/2500  1000/1500/2500  1000/1500/2500
 X-axis trave
 (tool spindle) 		  675(-125~+550)  675(-125~+550)  675(-125~+550)  675(-125~+550)  675(-125~+550)  675(-125~+550)
Z-axis travel (tool spindle)  1080/1580/2580  1080/1580/2580  1080/1580/2580  1080/1580/2580  1080/1580/2580  1080/1580/2580
X2-axis travel (tool spindle) - - 220 - - 220
Z2-axis travel (tool spindle) - -  680/1180/2180 - -  680/1180/2180
E-axis travel (tool spindle)  1050/1550/2550  1050/1550/2550  1050/1550/2550  1050/1550/2550  1050/1550/2550  1050/1550/2550
B direction rotation range
(tool spindle)		  ±120°  ±120°  ±120°  ±120°  ±120°  ±120°

Min. B direction indexing increment (tool spindle)

 5° 5° 5° 5° 5° 5°

Max. spindle speed
(spindle1/spindle2)

 4200/  - 4200/ 4200  4200/ 4200 4200/  - 4200/ 4200 4200/ 4200

Spindle nose

  A2-6  A2-6  A2-6  A2-8  A2-8  A2-8

Chuck size

 8 8 8 10 10 10

 Machine height (from floor)

 2720 2720 2720 2720 2720 2720


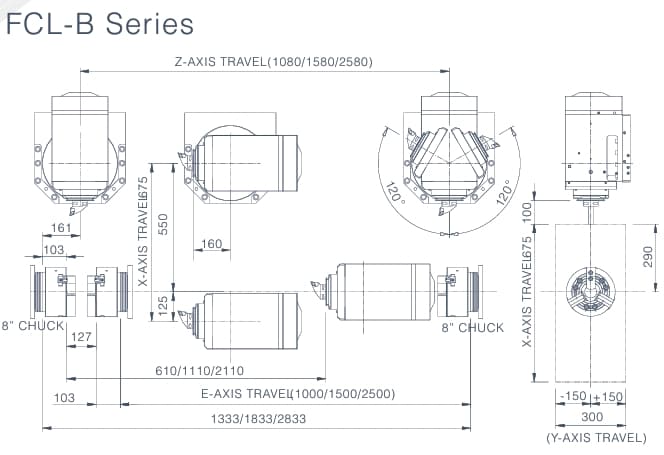

ITEM FCL-20B FCL-20BS FCL-20BTS FCL-30B FCL-30BS FCL-30BTS

 Max. swing of workpiece.

 660 660 660 660 660 660

 Max. turning length

  1050/1550/2550  1050/1550/2550  1050/1550/2550  1000/1500/2500  1000/1500/2500  1000/1500/2500
 X-axis trave
 (tool spindle) 		  675(-125~+550)  675(-125~+550)  675(-125~+550)  675(-125~+550)  675(-125~+550)  675(-125~+550)
Z-axis travel (tool spindle)  1080/1580/2580  1080/1580/2580  1080/1580/2580  1080/1580/2580  1080/1580/2580  1080/1580/2580
X2-axis travel (tool spindle) - - 220 - - 220
Z2-axis travel (tool spindle) - -  680/1180/2180 - -  680/1180/2180
E-axis travel (tool spindle)  1050/1550/2550  1050/1550/2550  1050/1550/2550  1050/1550/2550  1050/1550/2550  1050/1550/2550
B direction rotation range
(tool spindle)		  ±120°  ±120°  ±120°  ±120°  ±120°  ±120°

Max. spindle speed
(spindle1/spindle2)

 4200/  - 4200/ 4200  4200/ 4200 4200/  - 4200/ 4200 4200/ 4200

Spindle nose

  A2-6  A2-6  A2-6  A2-8  A2-8  A2-8

Chuck size

 8 8 8 10 10 10

 Machine height (from floor)

 2720 2720 2720 2720 2720 2720
