FNC Series

The slideways are coated with Teflon to eliminate stick-slip, minimize wear, and maintain long-term accuracy.
Gang-type CNC lathe. It has the longest gang slide travel in the world and has excellent rigidity and tool capacity.
The 45° bed is one-piece, close-grained casting mounted on a cast-iron base, on a cast-iron base.
Widely spaced hardened and ground slideways combined with the 32mm diameter. Z-axis ball screws give exceptional rigidity.

Swing over bed / Sub plate	Ø 400/120 mm (15.7"/4.7")
Chuck size	Ø 160 mm (6")
Spindle nose	A2 - 5
Spindle bearing diameter	Ø 90 mm (3.5")
Bar capacity	Ø 45 (1.7")

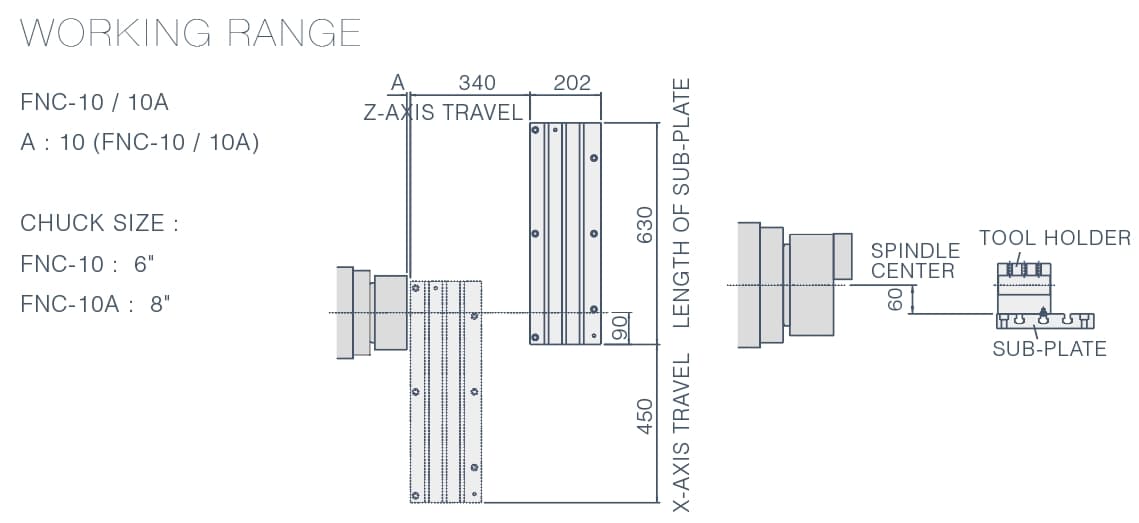

Cross slide travel (x)	450 mm (17.7")
Longitudinal carriage travel (Z)	340 mm (13.3")

Specifications
