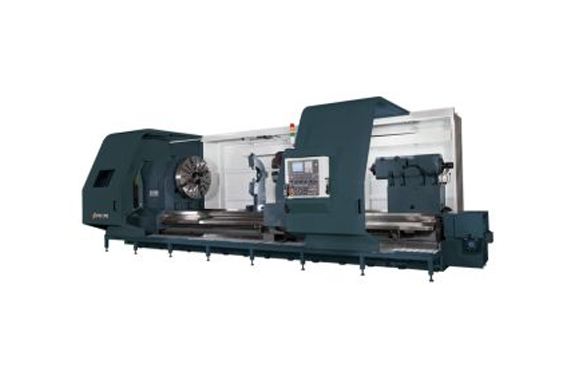

| Swing over bed | 1560 mm (61") |
| Bed width / Auxiliary guide | 1020 mm (40") / 1170 mm (46") |
| Swing over cross slide (Full length) | 1110 mm (43.7") |
| Spindle nose | A2-15 |
| X-axis travel (Half-length cross slide) | 600 mm (23.6") |
| Z-axis travel | 2150 mm (45.3") – 14150 mm (557") |
| Tailstock center | MT6 |
OPTIONS

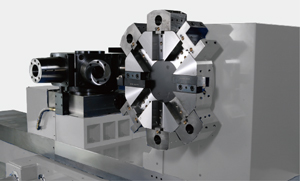

DOUBLE TURRETS
ROLLER SUPPORT BRACKET
FOLLOW REST (3 V BED WAY)
C-AXIS GEAR SYSTEM WITH REDUCER
Y-AXIS & MILLING DEVICE
DRIVING TOOL TURRET

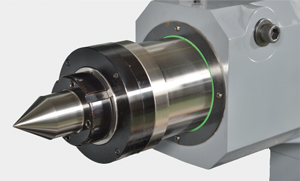

ROTATE QUILL TAILSTOCK
The higher rigidity rotated quill-type tailstock has bigger bearings than the live center.
