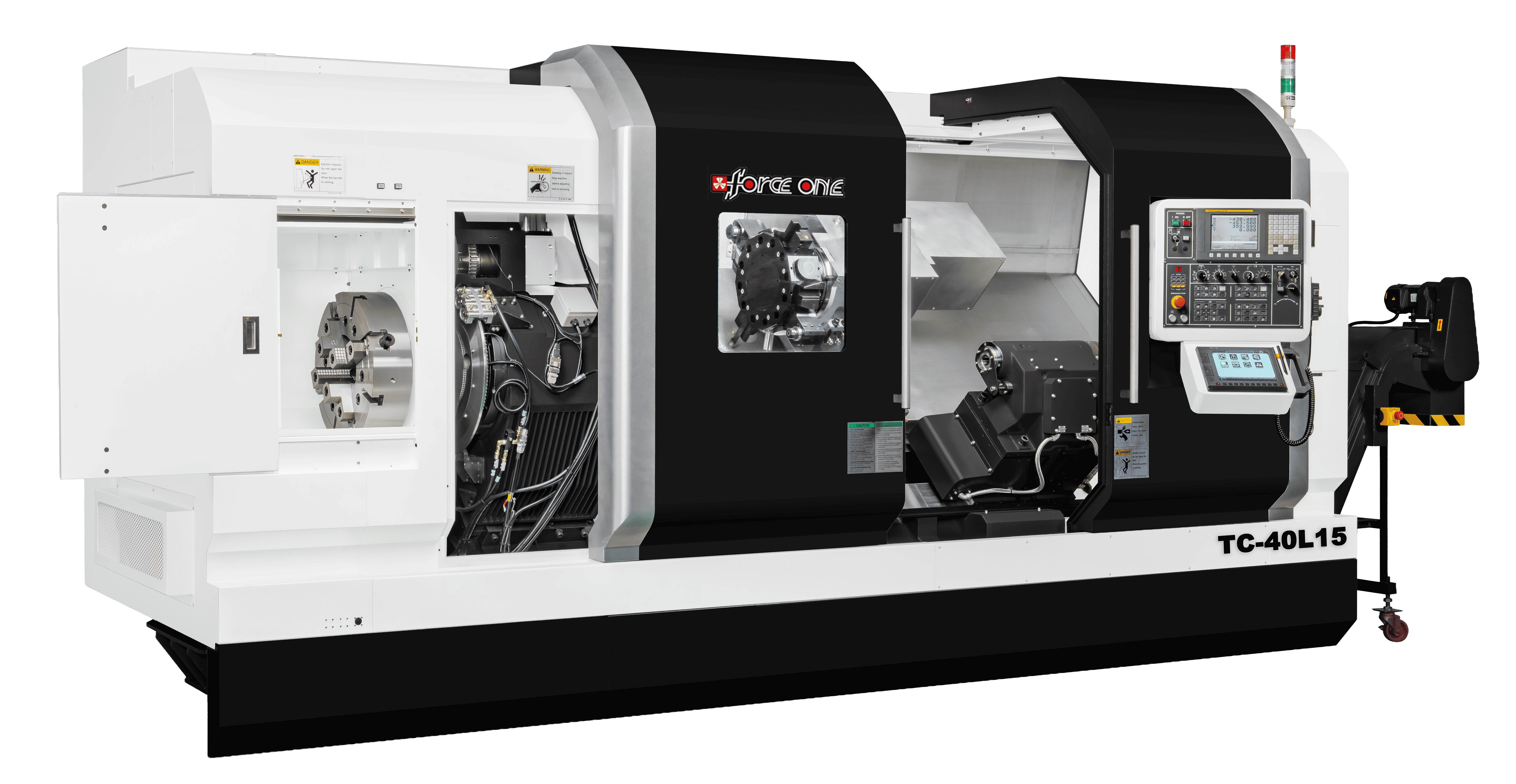

TC Series

Features

  • Box ways on X/Z axis exhibit outstanding accuracy and load resistance capacity.
  • Rigid and stable construction throughout.
  • One-piece constructed bed offers optimal bending-resistance and torsion-resistance capabilities especially when performing heavy cutting on extra large workpiece.
  • The spindles on the TC-35/40 series are driven by a gearbox with a 1:4 gear ratio. Full power output is possible when spindle speeds range 208 ~ 2,500 rpm.
  • The heavy-duty headstock on TC-45/50 is of one-piece casting, and it is with 3 or 4 speed gear head providing extra large torque output and making the machine ideal for heavy cutting.

ITEM TC-35L08 TC-35L15 TC-35L23 TC-35L30 TC-35L40 TC-35L50 TC-35L60 TC-35L70
Swing over bed Ø 660 mm
( 25.98” )		 Ø 660 mm
( 25.98” )		 Ø 660 mm
( 25.98” )		 Ø 660 mm
( 25.98” )		 Ø 660 mm
( 25.98” )		 Ø 660 mm
( 25.98” )		 Ø 660 mm
( 25.98” )		 Ø 660 mm
( 25.98” )
Swing over cross silde Ø 480 mm
(18.9 ” )		 Ø 480 mm
(18.9 ” )		 Ø 480 mm
(18.9 ” )		 Ø 480 mm
(18.9 ” )		 Ø 480 mm
(18.9 ” )		 Ø 480 mm
(18.9 ” )		 Ø 480 mm
(18.9 ” )		 Ø 480 mm
(18.9 ” )
Max turning diameter Ø 500 mm
(19.68 ” )		 Ø 500 mm
(19.68 ” )		 Ø 500 mm
(19.68 ” )		 Ø 500 mm
(19.68 ” )		 Ø 500 mm
(19.68 ” )		 Ø 500 mm
(19.68 ” )		 Ø 500 mm
(19.68 ” )		 Ø 500 mm
(19.68 ” )
Working length 760 mm
( 29.92" )		 1520 mm
( 59.8" )		 2280 mm
(89.76" )		 3040 mm
(119.68")		 4040 mm
(159.05")		 5040 mm
(198.42")		 6040 mm
(237.79")		 7040 mm
(277.16")
Spindle nose STD:A2-8
OPT:A2-11		 STD:A2-8
OPT:A2-11		 STD:A2-8
OPT:A2-11		 STD:A2-8
OPT:A2-11		 STD:A2-8
OPT:A2-11		 STD:A2-8
OPT:A2-11		 STD:A2-8
OPT:A2-11		 STD:A2-8
OPT:A2-11
Spindle bore STD: Ø 105mm
    (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")		 STD:Ø 105mm
  (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")		 STD:Ø 105 mm
        (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")		 STD:Ø 105 mm
        (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")		 STD:Ø 105 mm
        (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")		 STD:Ø 105 mm
        (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")		 STD:Ø 105 mm
        (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")		 STD:Ø 105 mm
        (4.13")
OPT(A2-11):
Ø 117mm(4.6")、
Ø 142mm(5.6")
Hydraulic chuck STD:12"
OPT:15"		 STD:12"
OPT:15"		 STD:12"
OPT:15"		 STD:12"
OPT:15"		 STD:12"
OPT:15"		 STD:12"
OPT:15"		 STD:12"
OPT:15"		 STD:12"
OPT:15"
X axis travel 250+25 mm
(9.84"+1")		 250+25 mm.(9.84"+1") 250+25 mm
(9.84"+1")		 250+25 mm
(9.84"+1")		 250+25 mm
(9.84"+1")		 250+25 mm
(9.84"+1")		 250+25 mm
(9.84"+1")		 250+25 mm
(9.84"+1")
Z axis travel 860 mm
(33.85")		 1620 mm
(63.78")		 2380 mm
(93.7")		 3140 mm
(123.62")		 4140 mm
(163")		 5140 mm
(202.36")		 6140 mm
(241.76")		 7140 mm
(281.10")


ITEM TC-40L08 TC-40L15 TC-40L23 TC-40L30 TC-40L40 TC-40L50 TC-40L60 TC-40L70
Swing over bed Ø 850 mm
( 33.45” )		 Ø 850 mm
( 33.45” )		 Ø 850 mm
( 33.45” )		 Ø 850 mm
( 33.45” )		 Ø 850 mm
( 33.45” )		 Ø 850 mm
( 33.45” )		 Ø 850 mm
( 33.45” )		 Ø 850 mm
( 33.45” )
Swing over cross silde Ø 660 mm
(26 ” )		 Ø 660 mm
(26 ” )		 Ø 660 mm
(26 ” )		 Ø 660 mm
(26 ” )		 Ø 660 mm
(26 ” )		 Ø 660 mm
(26 ” )		 Ø 660 mm
(26 ” )		 Ø 660 mm
(26 ” )
Max turning diameter Ø 710 mm
(27.95 ” )		 Ø 710 mm
(27.95 ” )		 Ø 710 mm
(27.95 ” )		 Ø 710 mm
(27.95 ” )		 Ø 710 mm
(27.95 ” )		 Ø 710 mm
(27.95 ” )		 Ø 710 mm
(27.95 ” )		 Ø 710 mm
(27.95 ” )
Working length 760 mm
( 29.92" )		 1520 mm
( 59.8" )		 2280 mm
(89.76" )		 3040 mm
(119.68")		 4040 mm
(159.05")		 5040 mm
(198.42")		 6040 mm
(297.79")		 7040 mm
(277.16")
Spindle nose STD:A2-8
OPT:A2-11/A2-15		 STD:A2-8
OPT:A2-11/A2-15		 STD:A2-8
OPT:A2-11/A2-15		 STD:A2-8
OPT:A2-11/A2-15		 STD:A2-8
OPT:A2-11/A2-15		 STD:A2-8
OPT:A2-11/A2-15		 STD:A2-8
OPT:A2-11/A2-15		 STD:A2-8
OPT:A2-11/A2-15
Spindle bore STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")		 STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")		 STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")		 STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")		 STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")		 STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")		 STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")		 STD: Ø 105mm(4.13")
OPT(A2-11):
Ø 131mm(5.15")、
Ø 142mm(5.6")
OPT:(A2-15):
Ø 166(6.53")
Hydraulic chuck STD:12"
OPT:15",15"/18"		 STD:12"
OPT:15",15"/18"		 STD:12"
OPT:15",15"/18"		 STD:12"
OPT:15",15"/18"
 STD:12"
OPT:15",15"/18"
 STD:12"
OPT:15",15"/18"
 STD:12"
OPT:15",15"/18"
 STD:12"
OPT:15",15"/18"
X axis travel 335+25 mm
(13.97"+1")		 335+25 mm
(13.97"+1")		 335+25 mm
(13.97"+1")		 335+25 mm
(13.97"+1")		 335+25 mm
(13.97"+1")		 335+25 mm
(13.97"+1")		 335+25 mm
(13.97"+1")		 335+25 mm
(13.97"+1")
Z axis travel 860 mm
(33.85")		 1620 mm
(63.78")		 2380 mm
(93.7")		 3140 mm
(123.62")		 4140 mm
(163")		 5140 mm
(202.36")		 6140 mm
(241.76")		 7140 mm
(281.10")


ITEM TC-45L12 TC-45L17 TC-45L22 TC-45L32 TC-45L42 TC-45L52 TC-45L62 TC-45L72
Swing over bed Ø 970 mm
( 38.1" )		 Ø 970 mm
( 38.1" )		 Ø 970 mm
( 38.1" )		 Ø 970 mm
( 38.1" )		 Ø 970 mm
( 38.1" )		 Ø 970 mm
( 38.1" )		 Ø 970 mm
( 38.1" )		 Ø 970 mm
( 38.1" )
Swing over cross silde Ø 720 mm
(28.3 ” )		 Ø 720 mm
(28.3 ” )		 Ø 720 mm
(28.3 ” )		 Ø 720 mm
(28.3 ” )		 Ø 720 mm
(28.3 ” )		 Ø 720 mm
(28.3 ” )		 Ø 720 mm
(28.3 ” )		 Ø 720 mm
(28.3 ” )
Max turning diameter Ø 800 mm
(33.4 ” )		 Ø 800 mm
(33.4 ” )		 Ø 800 mm
(33.4 ” )		 Ø 800 mm
(33.4 ” )		 Ø 800 mm
(33.4 ” )		 Ø 800 mm
(33.4 ” )		 Ø 800 mm
(33.4 ” )		 Ø 800 mm
(33.4 ” )
Working length 1130 mm
( 44.48" )		 1630 mm
( 64.17" )		 2130 mm
(83.85" )		 3090 mm
(121.65")		 4030 mm
(158.66")		 5030 mm
(198.03")		 6030 mm
(237.4")		 7030 mm
(276.77")
Spindle nose STD:A2-8
OPT:A2-15/A2-20		 STD:A2-8
OPT:A2-15/A2-20		 STD:A2-8
OPT:A2-15/A2-20		 STD:A2-8
OPT:A2-15/A2-20
 STD:A2-8
OPT:A2-15/A2-20
 STD:A2-8
OPT:A2-15/A2-20
 STD:A2-8
OPT:A2-15/A2-20
 STD:A2-8
OPT:A2-15/A2-20
Spindle bore STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")
 STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")		 STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")		 STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")		 STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")		 STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")		 STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")		 STD: Ø 160mm (6.3")
OPT(A2-15):
Ø 230mm(9")
OPT(A2-20):
Ø 320mm(12.59")、
Ø360(14.17")
Hydraulic chuck OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,---" OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,---
X axis travel 425+25 mm
(16.7"+1")		 425+25 mm
(16.7"+1")		 425+25 mm
(16.7"+1")		 425+25 mm
(16.7"+1")		 425+25 mm
(16.7"+1")		 425+25 mm
(16.7"+1")		 425+25 mm
(16.7"+1")		 425+25 mm
(16.7"+1")
Z axis travel 1250 mm
(49.2")		 1750 mm
(68.89")		 2250 mm
(88.58")		 3210 mm
(126.37")		 4150 mm
(163.38")		 5150 mm
(202.75")		 6150 mm
(242.13")		 7150 mm
(281.5")


ITEM TC-50L22 TC-50L32 TC-50L42 TC-50L52 TC-50L62 TC-50L72
Swing over bed Ø 1100 mm
( 43” )		 Ø 1100 mm
( 43” )		 Ø 1100 mm
( 43” )		 Ø 1100 mm
( 43” )		 Ø 1100 mm
( 43” )		 Ø 1100 mm
( 43” )
Swing over cross silde Ø 940 mm
(37 ” )		 Ø 940 mm
(37 ” )		 Ø 940 mm
(37 ” )		 Ø 940 mm
(37 ” )		 Ø 940 mm
(37 ” )		 Ø 940 mm
(37 ” )
Max turning diameter Ø 1020 mm
(40 ” )		 Ø 1020mm
(40 ” )		 Ø 1020 mm
(40 ” )		 Ø 1020 mm
(40 ” )		 Ø 1020 mm
(40 ” )		 Ø 1020 mm
(40 ” )
Working length 2150 mm
(86.65" )		 3140 mm
(123.62")		 4075 mm
(160.43")		 5055 mm
(199.02")		 6055 mm
(238.39")		 7055 mm
(277.76")
Spindle nose STD:A2-11
OPT:A2-15/A2-20		 STD:A2-11
OPT:A2-15/A2-20		 STD:A2-11
OPT:A2-15/A2-20		 STD:A2-11
OPT:A2-15/A2-20		 STD:A2-11
OPT:A2-15/A2-20		 STD:A2-11
OPT:A2-15/A2-20
Spindle bore STD:Ø 160 mm (6.3")
OPT(A2-15):
Ø 230 mm (9")
OPT(A2-20):
Ø 320 mm (12.59")、
Ø360 mm (14.17")
 STD:Ø 160 mm (6.3")
OPT(A2-15):
Ø 230 mm (9")
OPT(A2-20):
Ø 320 mm (12.59")、
Ø360 mm (14.17")		 STD:Ø 160 mm (6.3")
OPT(A2-15):
Ø 230 mm (9")
OPT(A2-20):
Ø 320 mm (12.59")、
Ø360 mm (14.17")		 STD:Ø 160 mm (6.3")
OPT(A2-15):
Ø 230 mm (9")
OPT(A2-20):
Ø 320 mm (12.59")、
Ø360 mm (14.17")		 STD:Ø 160 mm (6.3")
OPT(A2-15):
Ø 230 mm (9")
OPT(A2-20):
Ø 320 mm (12.59")、
Ø360 mm (14.17")		 STD:Ø 160 mm (6.3")
OPT(A2-15):
Ø 230 mm (9")
OPT(A2-20):
Ø 320 mm (12.59")、
Ø360 mm (14.17")
Hydraulic chuck OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,--- OPT:15"/24"/---,---
X axis travel 510+25 mm
(20"+1")		 510+25 mm
(20"+1")		 510+25 mm
(20"+1")		 510+25 mm
(20"+1")		 510+25 mm
(20"+1")		 510+25 mm
(20"+1")
Z axis travel 2260 mm
(88.97")		 3220 mm
(126.77")		 4090 mm
(161.02")		 5070 mm
(199.61")		 6070 mm
(238.28")		 7070 mm
(238.98")


Dimension Drawing-TC Series Slant Bed Heavy Duty CNC Lathe

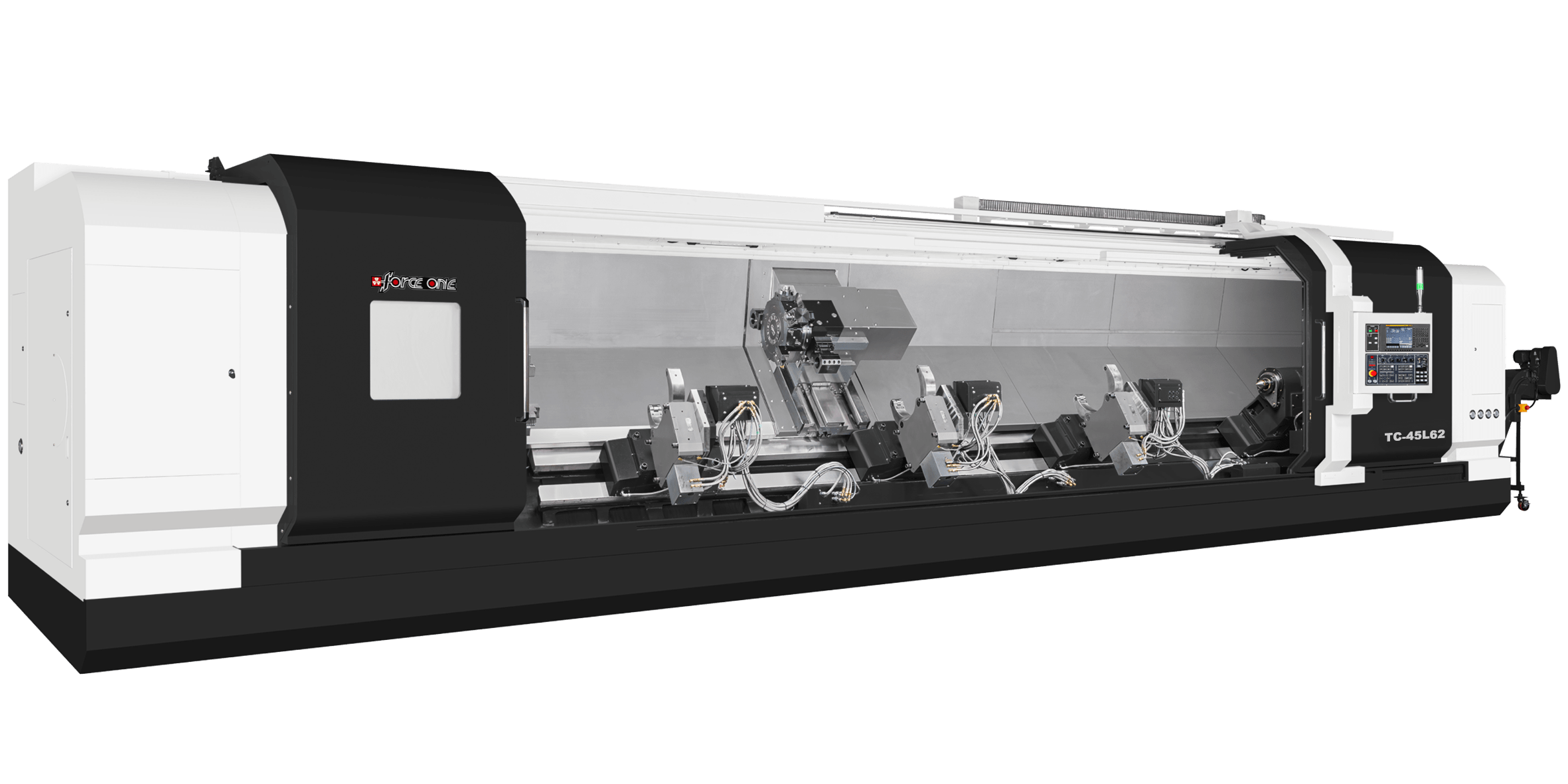

TC Series Slant Bed Heavy Duty CNC Lathe
Tooling System-TC Series Slant Bed Heavy Duty CNC Lathe

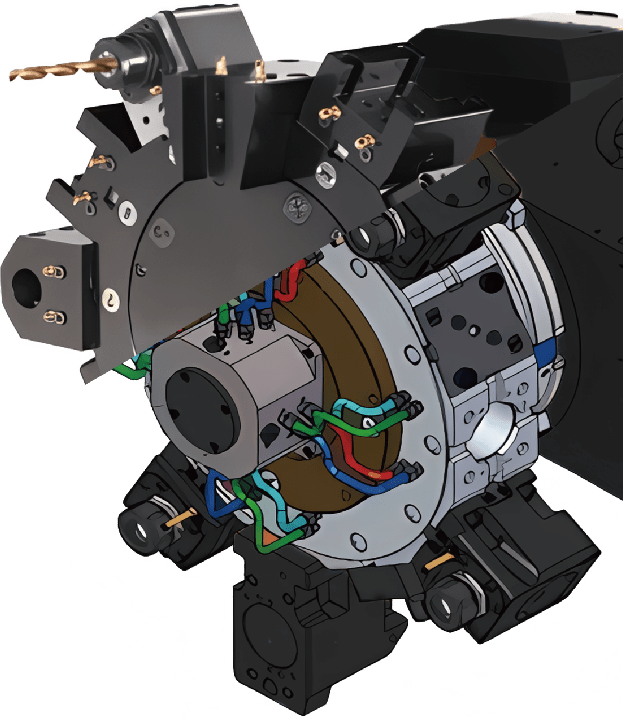

BMT TYPE OPT. The drawing will be provided by the requirement.
- All specifications, designs, and characteristics shown on this catalog are subject to change without prior notice.

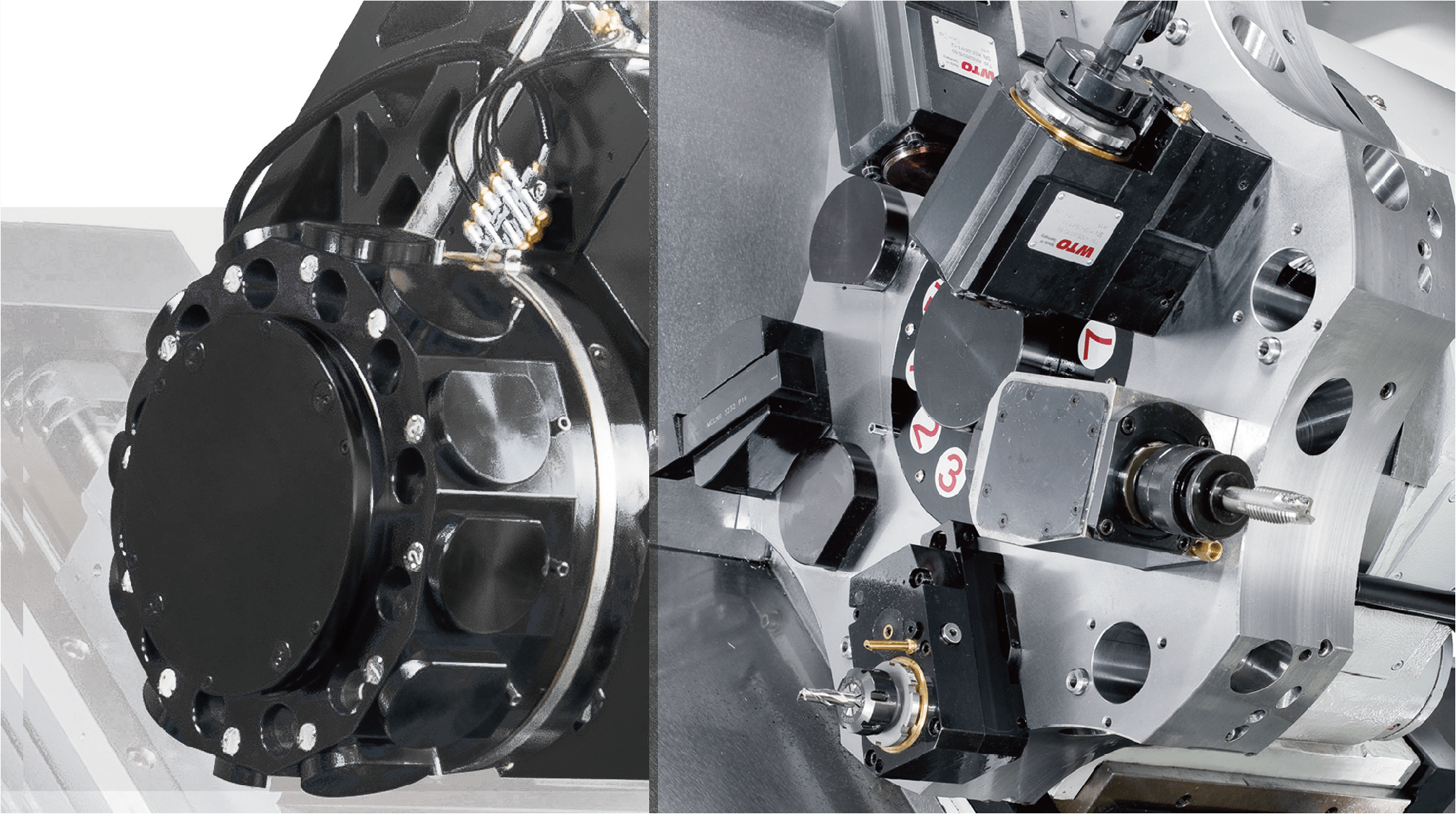

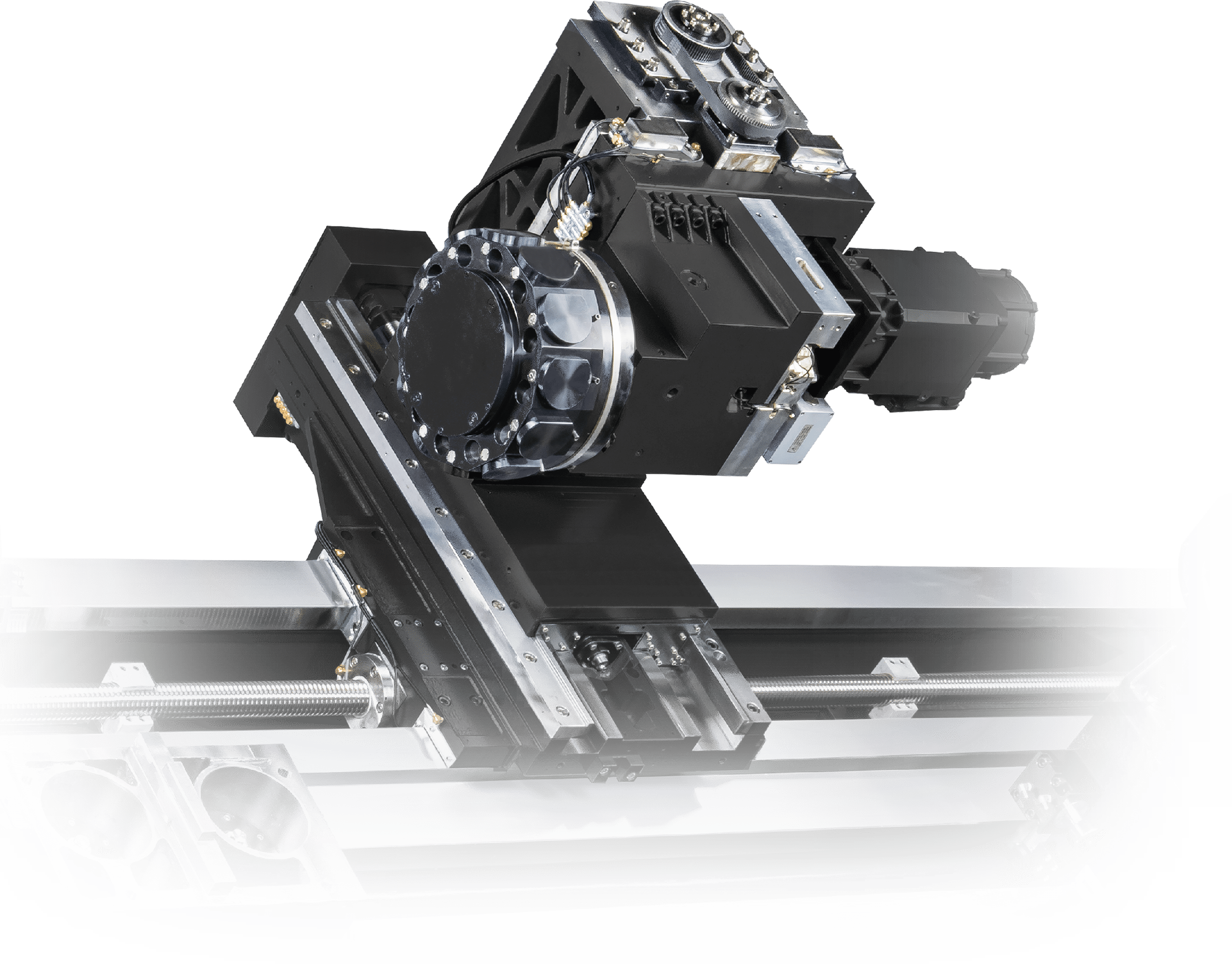

MACHINE FEATURE Y AXIS TURRET (OPT.)

  • One-piece design of the Y-axis base and X saddle for high-accuracy structure configuration.
  • Fast indexing turret features with high repeat accuracy.
  • The high rigidity turret is better for front and back machining.
Machine Feature Y Axis Turret

Machine Feature Y Axis Turret (OPT.)

POWER TURRET (OPT.)

  • Employs VDI 50 axial turret disk, 12 position power turret. (Two PCD Inner PCD has 6 stations for milling. Outer PCD has 6 stations for turning )
  • High indexing resolution for contour/index control.
  • Hydraulic disk brake locking provides maximum stability during milling and contouring.

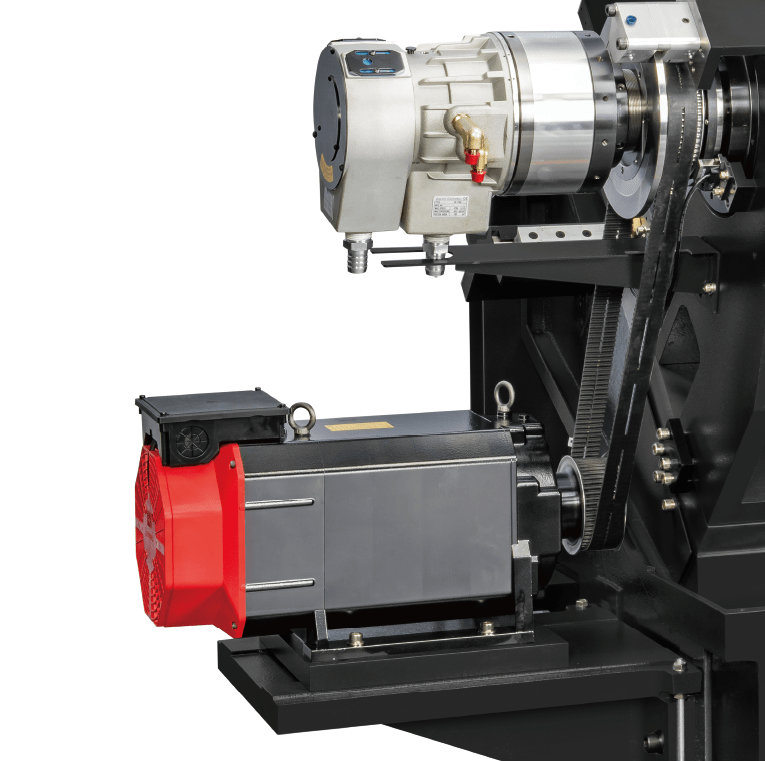

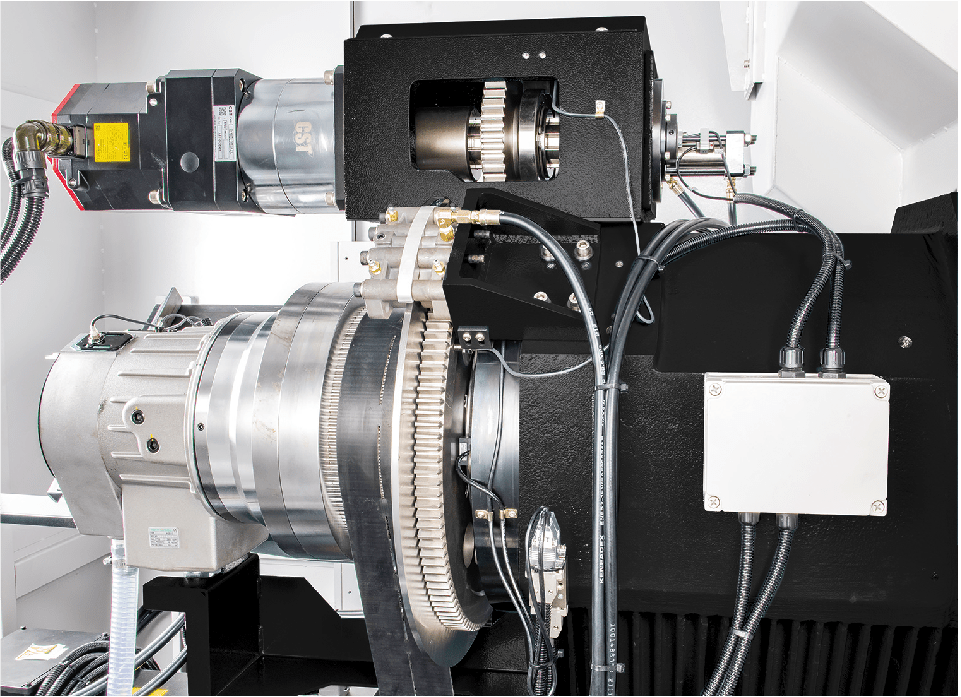

CF-AXIS

CF AXIS (OPT.)

CF axis with additional servo motor and gearbox. it has better rigidity for simulation milling.

CF-AXIS (OPT.)

CF AXIS (OPT.)

CS axis is driven by a servo spindle motor, it is suitable for spindle indexing and milling at position.

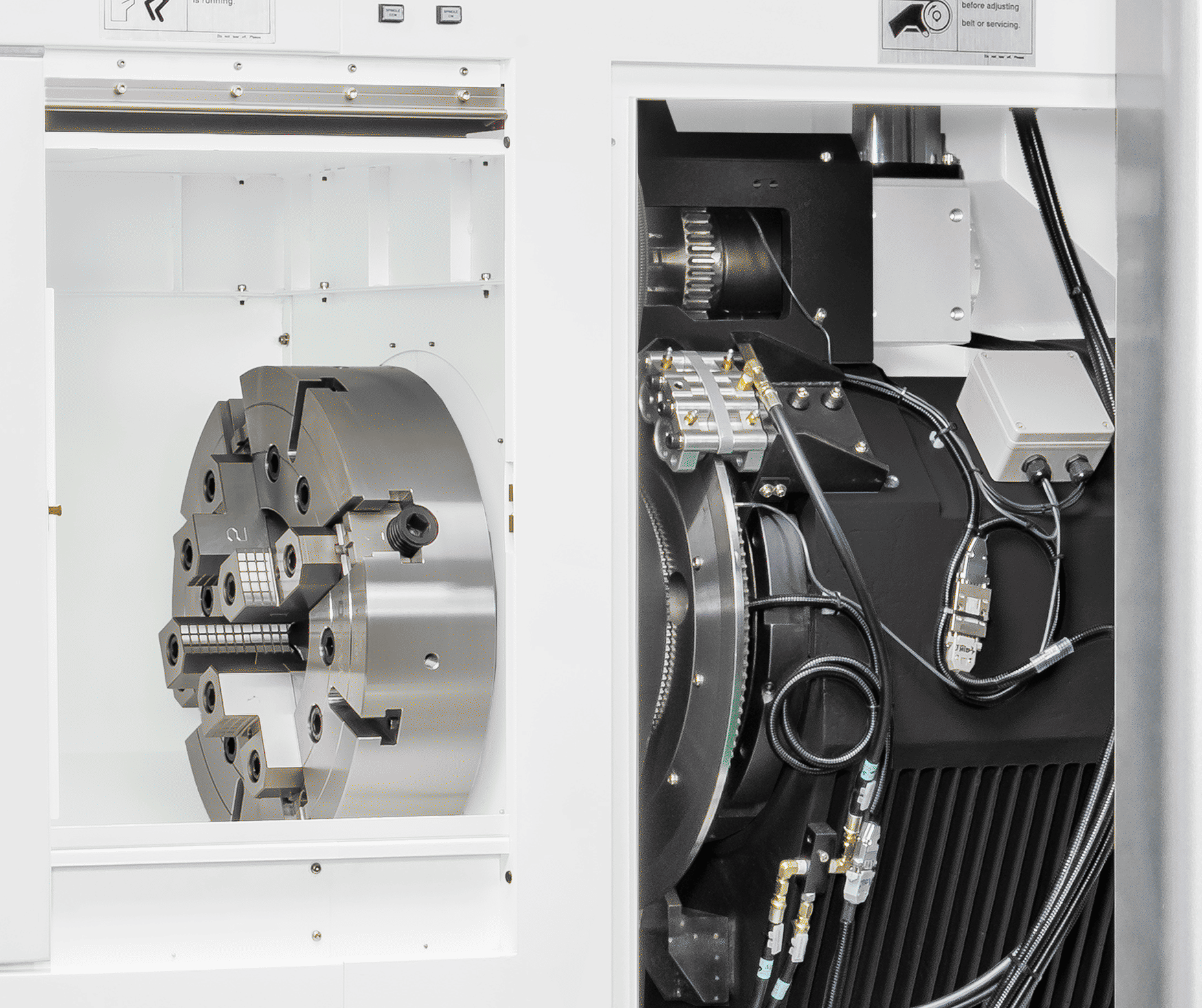

Rear Chuck (OPT.)

REAR CHUCK (OPT.)

The Telescopic Rubber Cover (OPT.)

THE TELESCOPIC RUBBER
COVER (OPT.)

Provides superior micro-dust protection for the track and extends the lifespan of the cover during composite material grinding operations.

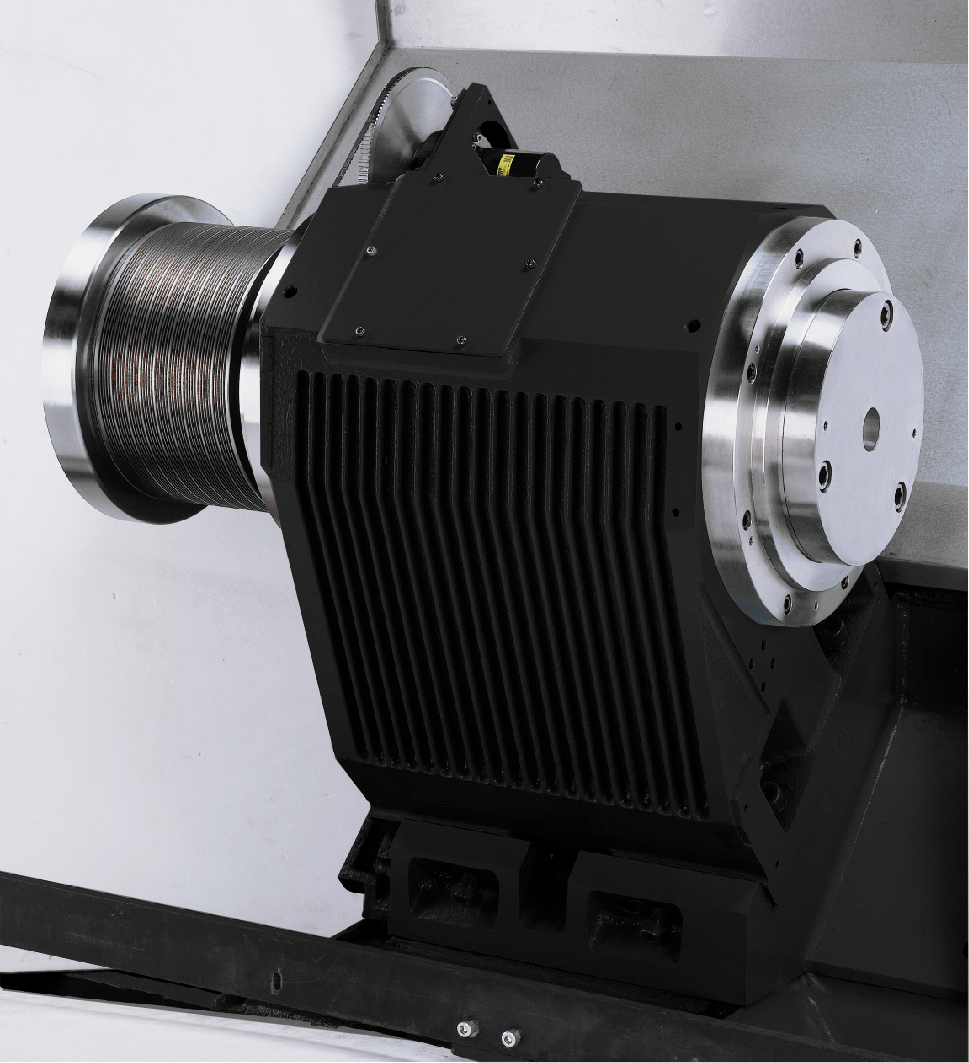

Powerful High-speed & High-rigid Spindle

POWERFUL HIGH-SPEED
AND HIGH-RIGID SPINDLE (TC-35/40 series)

The spindle supported by cylindrical roller bearings and high-speed angular thrust bearings marks the spindle as faultless and ideal for heavy duty and high-speed turning.

2-STAGE SPEED GEAR BOX
(TC-35/40 series)

The TC-35/TC-40 series is equipped with a "high precision" stages gearbox (Gear ratio 1:4) that provides full horsepower cutting from 208~2,500 rpm. The maximum cutting torque is 660 NM.

2-stage Speed Gear Box
Gear Box

GEAR BOX (TC-45/50 series)

The headstock is with a 3 or 4-speed gear head, Gears are precision-ground for quiet running.

INDEX CHUCK(OPT.)

Capable of turning multi-angle machining parts, such as tees and crosses, with automatic angle adjustment and complete processing at one time.

Index Chuck

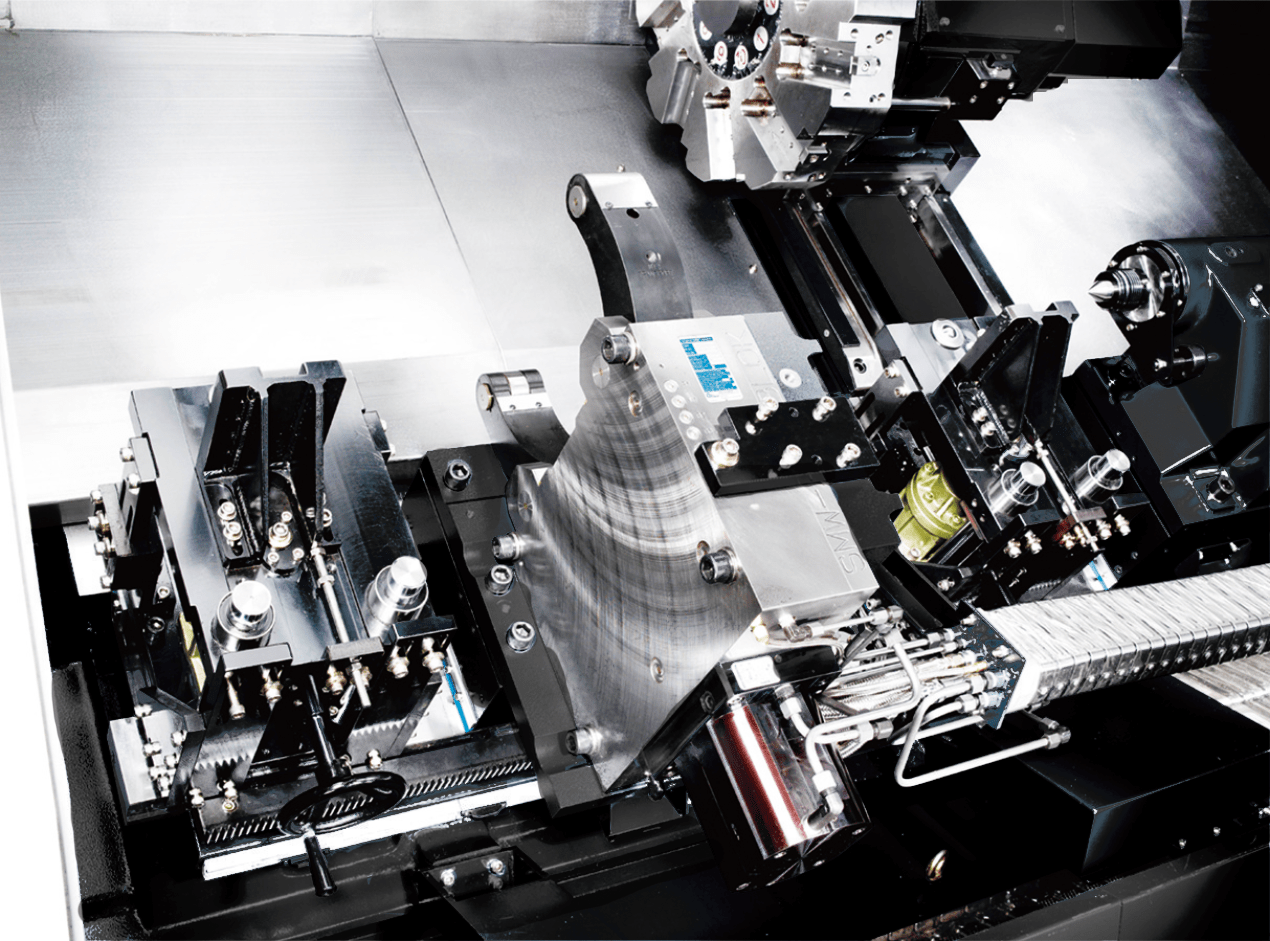

Steady Rest (OPT.)

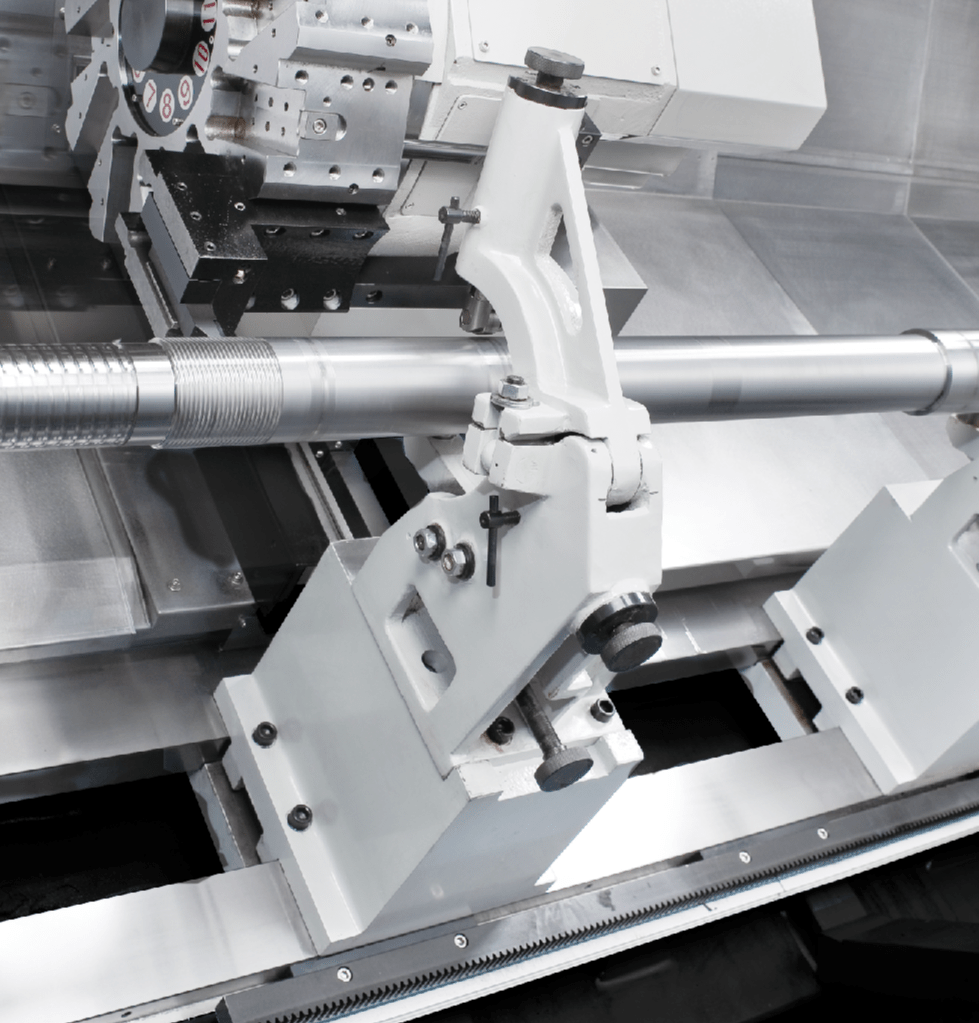

Steady Rest

STEADY REST (OPT.)

The manual steady rest/hydraulic power unit offers a further level of customization, allowing the incorporation of a temporary toolpost and servo-driven movement functionality (To be used in conjunction with the toolpost) to meet the specific machining requirements of our customers.

WORKPIECE PROBE


Tool Measure System

TOOL MEASURE SYSTEM

Manual / Automatic swing arm.

Workpiece Measure System

WORKPIECE MEASURE SYSTEM

Automatic measurement and correction of dimensions.


Spindle Cooler

SPINDLE COOLER (OPT.)

The spindle cooler is designed for high-precision machining, ensuring stable temperature control to prevent overheating, which can compromise accuracy and cause equipment wear. Its efficient cooling system enhances machining stability, extends spindle lifespan, and improves productivity and product quality, making it an essential component for reliable machine operation.

SUB Spindle

SUB SPINDLE (OPT.)

Synchronization for main and sub-spindle. The workpiece can be machined at one time,


ESG (OPT.)


Automatic Grease Lubrication System

AUTOMATIC GREASE LUBRICATION SYSTEM

It significantly reduces lubricant usage, effectively reduces coolant tank pollution, and improves coolant quality.

Variable Frequency Hydraulic System

VARIABLE FREQUENCY HYDRAULIC SYSTEM

Excellent energy-saving effect, smaller fuel tank volume, and temperature control.

Smart Power-off System

SMART POWER-OFF SYSTEM

A smart power-off system temporarily limits the use of power-hungry devices during standby. After processing is completed, the system can automatically power off the equipment.


Smart Machine Monitoring And Prevention System
Smart Machine Monitoring System
Smart Machine Prevention System

SMART MACHINE MONITORING AND PREVENTION SYSTEM (OPT.)

Real-time spindle load monitoring is combined with artificial intelligence software technology to automatically construct a safe processing load zone, and includes intelligent tool performance management to monitor and prevent abnormalities during processing, eliminating the need for human supervision.


Bmt & Auto Tool Change Turret Solution

BMT & AUTO TOOL CHANGE TURRET SOLUTION (OPT.)

The BMT interface turret features a more rigid structure, supporting a wide range of live tooling options and quick-change interfaces, such as Capto, enabling efficient external tool management. Additionally, we offer a hydraulic turret auto-change solution, which, when combined with a robotic arm, enables automated turret tool-changing functionality.

DUST COLLECTOR (OPT.)

The dust collector is designed for efficient dust management, swiftly capturing fine particles and debris during machining to maintain a clean workspace, enhance machining accuracy, and improve operational safety. Its advanced filtration system ensures that discharged air meets environmental standards, while also extending equipment lifespan, making it an ideal solution for maintaining a productive environment.

Dust Collector
Hollow Ball Screws With Coolant System

HOLLOW BALL SCREWS WITH COOLANT SYSTEM (OPT.)

The hollow ball screw cooling system can significantly reduce the thermal temperature rise position accuracy error caused by screw friction during machine movement, thereby improving the positioning accuracy of the machine.

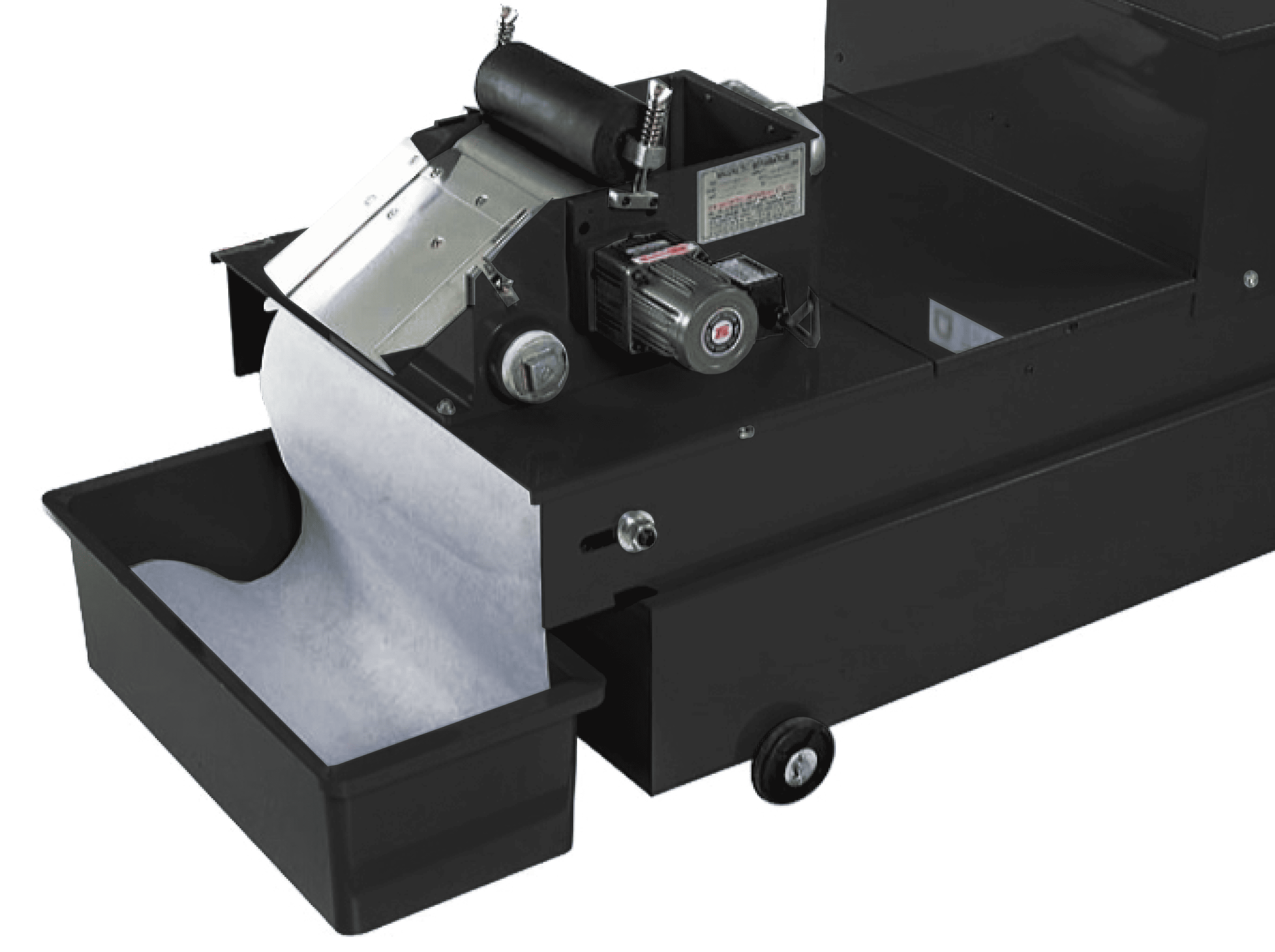

Coolant Control System

COOLANT CONTROL SYSTEM (OPT.)

  • Hight pressure coolant system 5/10/20/50/70 bar
  • Oil skinner
  • Paper filter system
  • Magnetic filter system

CONTROLLER

Controller-TC Series Slant Bed Heavy Duty CNC Lathe

The standard controller is FANUC, there are other controllers such as SIEMENS, MITSUMISHI, FAGOR, SYNTEC, and others you could select as optional.

OIL MIST COLLECTOR (OPT.)

The oil mist collector uses advanced separation technology to efficiently capture oil mist generated during machining, reducing air pollution and improving workshop environment quality. Recovered cutting fluids can be recycled, saving costs and extending equipment lifespan, making it the perfect blend of environmental and economic benefits.

ROTATE QUILL TAILSTOCK (OPT.)

The higher rigidity rotated quill-type tailstock has bigger bearings than the live center.

Back
Send inquiry
